SICL 40

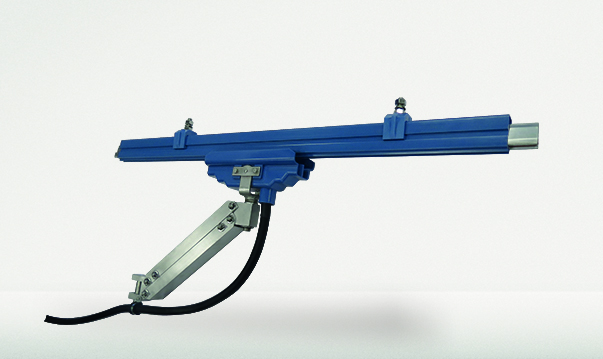

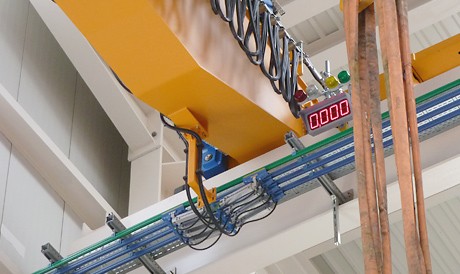

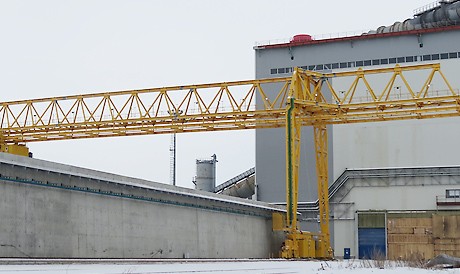

The SICL40 system is a plastic-insulated conductor line system protected against contact for indoor applications but also in particular, for outdoor applications, designed in compliance with VDE 0100. It is suitable for amperages up to 2200 A and is also particularly suitable for the application of service duty cranes and gantry cranes as well as conveyor systems.
Technical specifications
| Housing material | PVC |
| Standard length | 6000 mm |
| Number of conductors | unlimited |
| Suspension distance | max. 2500 mm |
| Voltage | 1000 V |
| Current capacity (100% ED at 35°C) | 2200 A |
| Conductor bar cross-section | max. 900 mm² |
| Conductor material | copper, alu-copper, alu-stainless steel |
| Ambient / housing temperature | - 30 °C to + 90 °C |
| Travel speed | 600 m/min |
| Protection class (DIN VDE 0470 T.1/EN 60529) | IP23 |
| Smallest curve radius, vertical/horizontal | > 2500 mm |
| Application area | in-/outdoors |
| Fire protection equipment | UL94 / V0 |
