Top-Running-System

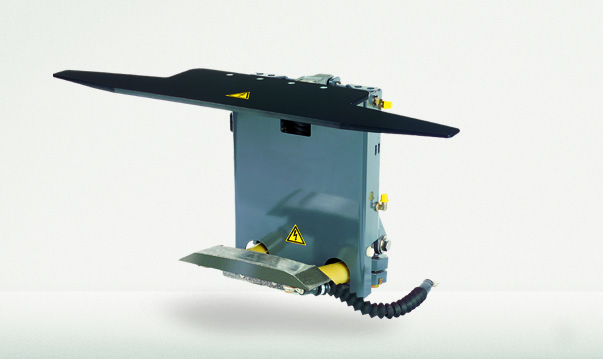

3rd Rail Current Collector Fb213
with mechanical drive for conductor rails in top running systems
TECHNICAL DETAILS
| Total width | 472 mm |
| Total depth | 503 mm |
| Voltage | 750 V DC |
| Continuous current | 800 A |
| Weight | approx. 24 kg |
| Type of drive | mechanical emergency operation and latching |
| Contact force | 160 N; +/- 10 N |
| Application | a. o. Puerto Rico, Stockholm |

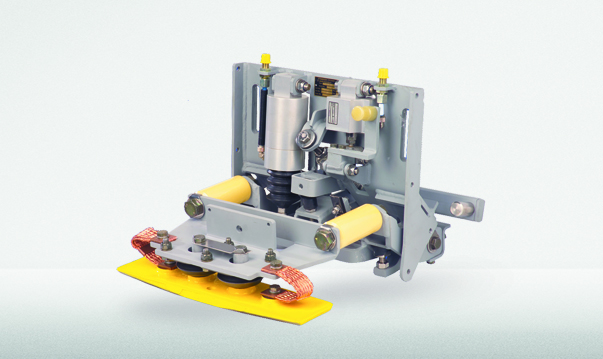

3rd Rail Current Collector Fb219
with pneumatic drive for conductor rails in top running systems
TECHNICAL DETAILS
| Width | 320 mm |
| Depth | 350 mm |
| Voltage | 750 V DC |
| Continuous current | 400 A |
| Weight | approx. 27 kg |
| Type of drive | working movement is effected by 2 torsion springs mechanical emergency actuation possible |
| Contact force | 100 - 120 N |
| Application | a. o. Athens |
