Special developements

To optimize the functions and to protect our roof-mounted pantographs for damage we offer several specialized components.

Our open-loop-system for heavy rail vehicles ensures an uniform contact force of the pantograph on the overhead wire at all speeds. The ADD-system for light rail vehicles ensures that pantographs with damaged contact strips or collector heads are lowered automatically.

In this manner, consequential damage to the overhead wire is reduced to a minimum. Our non-icing system prevents icing of the overhead wires and serves for a secure contact.

The Variopanto® replaces two traditional pantographs and the normally required circuit breaker as well as other connecting and fastening elements. This saves more than 50% weight and installation space.

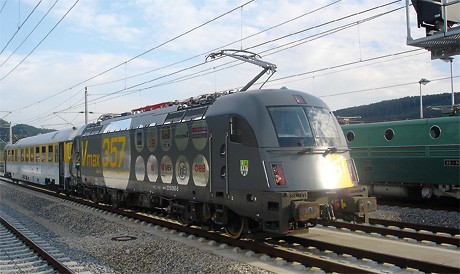

Variopanto® - Single-arm pantograph for cross-border rail traffic

Electrically powered rail cars such as locomotives, EMUs and other vehicles are increasingly used in international border traffic. But as power supply conditions and overhead contact systems differ from one country to the next, each system requires the construction of an individual pantograph system.

read more

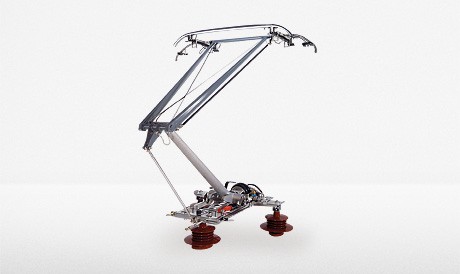

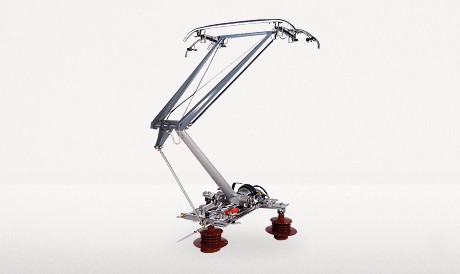

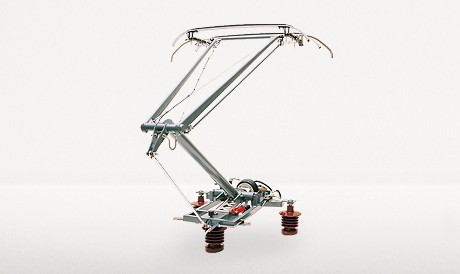

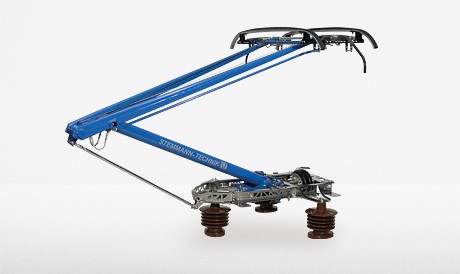

Open Loop System for DSA roof-mounted pantographs

In order for the electrical current to be transferred from the catenary wire to the railway vehicle preferably without any interruptions, the pantograph has to work with the same contact force on the catenary wire at all speeds. A minimised force can lead to contact interferences, too much contact force can lead to an increased friction - and therefore, to increased wear.

read more

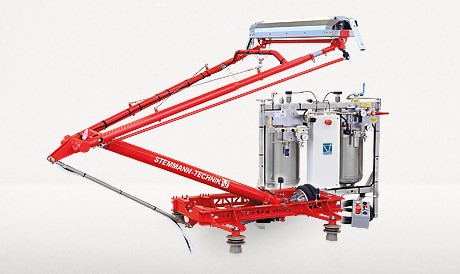

Non-Icing System

The freezing of catenary wire systems in the area of railway vehicles during the winter months is a recurring problem, given that the formation of ice on the overhead lines interferes with the current consumption via the contact strips. Damages resulting from this can lead to significant costs.

read more

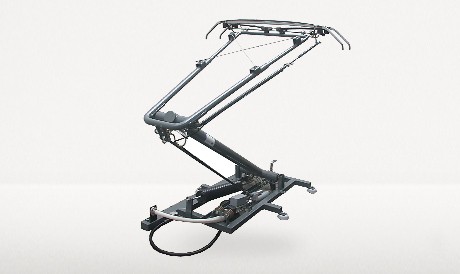

ADD - Automatic Emergency Drop

Damaged pantographs can have significant effects on vehicle operation and result in economic losses in line operation. For example if traction units drive with damaged contact strips, this usually leads to damage to the overhead lines over the distance of several kilometres. Therefore, we developed an automatic emergency drop (automatic dropping device).

read more
