SICL 10-system

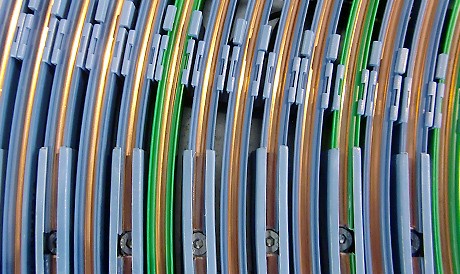

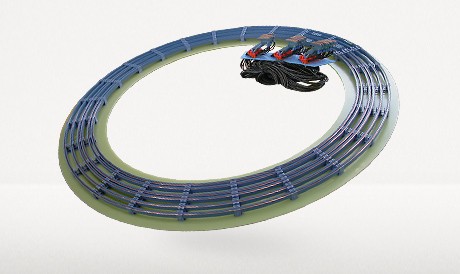

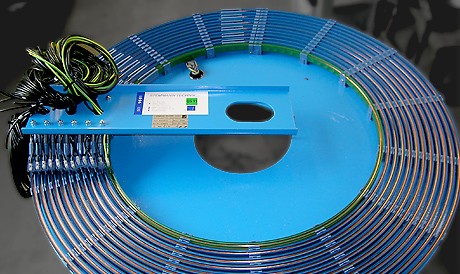

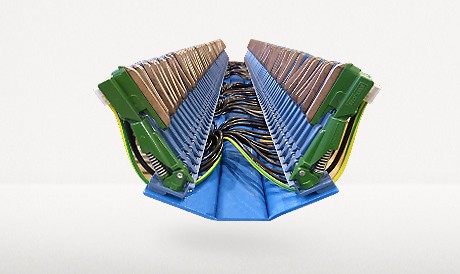

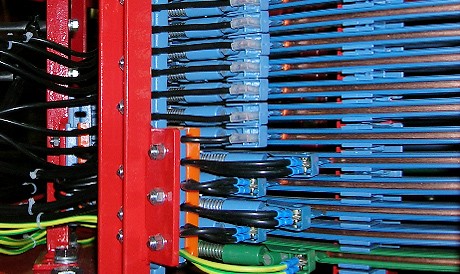

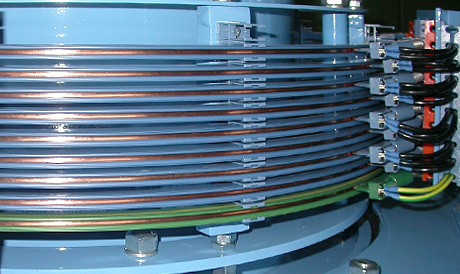

The slip rings in the SICL10-system are based on our individually insulated conductor line SICL10. We manufacture slip ring systems with large diameters also in concentric designs, made to measure for the respective application. The minimum arc radius is 300 mm.
The SICL10-system enables flat installation heights and can be manufactured with housings, which can be separated. Combinations with our “WFo series” are possible.
Version
| Slip ring material | plastic-insulated copper bus bar, if required silver-plated or nickel-plated |
| Brushes | carbon from bronze graphite or silver graphite |
| Speed | up to 18 m/min |
| Data transmission | with refined rings and silver graphite carbon |
| Housing | stainless steel or steel (galvanised or painted) |
| Protection class | up to IP 23 |
